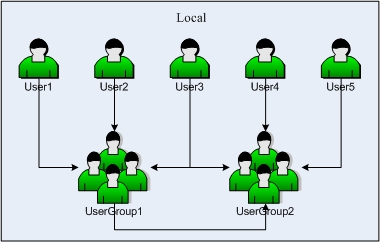

User refers to the user who uses the functions and services provided by the security device, or who is authenticated or managed by the device. The authenticated users consist of local user and external user. The local users are created by administrators. They belong to different local authentication servers, and are stored in system's configuration files. The external users are stored in external servers, such as AD server or LDAP server. System supports User Group to facilitate user management. Users belonging to one local authentication server can be allocated to different user groups, while one single user can belong to different user groups simultaneously; similarly, user groups belonging to one local authentication server can be allocated to different user groups, while one single user group can belong to different user groups simultaneously. The following diagram take the default AAA server Local as an example and shows the relationship between users and user groups:
As shown above, User1, User2 and User3 belong to UserGroup1, while User3 also belongs to UserGroup2, and UserGroup2 also contains User4, User5 and UserGroup1.
