PKI Configuration Example

This section describes an example of creating a security alliance by IKE. The authentication policy of IKE adopts PKI certificate system.

Networking Requirement

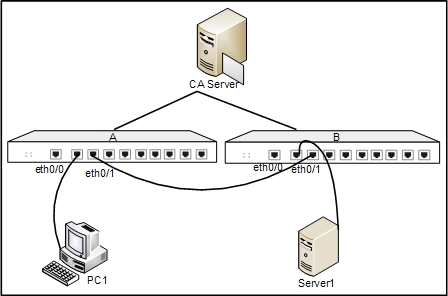

The goal is to create a secure tunnel between Device A and Device B. PC1 is used as the host of Device A, with the IP address being 10.1.1.1, and the gateway address is 10.1.1.2; Server1 is used as the server of Device B, whose IP address is 192.168.1.1, and the gateway address is 192.168.1.2. The requirement is: protecting the traffic between the subnet represented by PC1 (10.1.1.0/24) and the subnet represented by server1 (192.168.1.0/24). The authentication policy adopts PKI certificate system, using security protocol ESP and encryption algorithm 3DES, and the Hash algorithm is SHA1. The networking topology is shown as follows:

Configuration Procedure

Take the following steps:

Step 1: Configure interfaces.

Device A

  1. On the Navigation pane, click Configure > Network > Network to visit the Network page.
  2. Select ethernet0/0 from the interface list, and click Edit. In the Interface Configuration dialog, configure the options as below:
  3. Click OK to save your settings and return to the Network page.
  4. Select ethernet0/1 from the interface list, and click Edit. In the Interface Configuration dialog, configure the options as below:
  5. Click OK to save the changes and return to the Network page.
  6. Click New, and select Tunnel Interface from the drop-down list. In the Interface Configuration dialog, configure the options as below:
  7. Click OK to save your settings and return to the Network page.

Device B

  1. On the Navigation pane, click Configure > Network > Network to visit the Network page.
  2. Select ethernet0/0 from the interface list, and click Edit. In the Interface Configuration dialog, configure the options as below:
  3. Click OK to save your settings and return to the Network page.
  4. Select ethernet0/1 from the interface list, and click Edit. In the Interface Configuration dialog, configure the options as below:
  5. Click OK to save your settings and return to the Network page.
  6. Click New, and select Tunnel Interface from the drop-down list. In the Interface Configuration dialog, configure the options as below:
  7. Click OK to save your settings and return to the Network page.

Step 2: Configure policy rules.

Device A

  1. On the Navigation pane, click Configure > Security > Policy to visit the Policy page.
  2. Click New. On the Basic tab in the Policy Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured policy will be displayed in the policy list below.
  4. Click New. On the Basic tab in the Policy Configuration dialog, configure the options as below:
  5. Click OK to save your settings. The configured policy will be displayed in the policy list below.

Device B

  1. On the Navigation pane, click Configure > Security > Policy to visit the Policy page.
  2. Click New. On the Basic tab in the Policy Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured policy will be displayed in the policy list below.
  4. Click New. On the Basic tab in the Policy Configuration dialog, configure the options as below:
  5. Click OK to save your settings. The configured policy will be displayed in the policy list below.

Step 3: Configure Phase1 Proposal.

Device A

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. On the Phase1 Proposal tab, click New. In the Phase1 Proposal Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured proposal will be displayed in the proposal list below.

Device B

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. On the Phase1 Proposal tab, click New. In the Phase1 Proposal Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured proposal will be displayed in the proposal list below.

Step 4: Configure PKI.

Device A

  1. Select Objects > PKI from the menu bar.
  2. On the Key tab in the PKI Management dialog, click New. In the PKI Key Configuration dialog, configure the options as below:
  3. Click OK to save your settings and return to the PKI Management dialog.
  4. Click the Trust Domain tab, and then click New on the upper-left. In the PKI Key Configuration dialog, configure the options as below:
    1. Type td1 into the Trust domain box, and click Manual enrollment in Enrollment type. Click Next to import a CA root certificate.
    2. Click Browse to select a certificate, and then click Import. Click Next to continue.
    3. Select 111 from the Key pair drop-down list, and configure the Subject as below:
      • Name: aa
      • Country (Region): cn
      • Locality: hd
      • State/Province: bj
      • Organization: abc
      • Organization unit: rd
    4. Click Enroll to apply for a local certificate from the CA server. If succeeded, click Import in the Local certificate section to import the local certificate.
    5. Click Next to configure CRL options as below in the next page:
      • Check: Force
      • Auto refresh: Daily
      • URL1: CA server's address
    6. Click OK to save your settings.

Device B

  1. Select Objects > PKI from the menu bar.
  2. On the Key tab in the PKI Management dialog, click New. In the PKI Key Configuration dialog, configure the options as below:
  3. Click OK to save your settings and return to the PKI Management dialog.
  4. Click the Trust Domain tab, and then click New. In the PKI Key Configuration dialog, configure the options as below:
    1. Type td2 into the Trust domain box, and click Manual enrollment in Enrollment type. Click Next to import a CA root certificate.
    2. Click Browse to select a certificate, and click Import. Click Next to continue.
    3. Select 222 from the Key pair drop-down list, and configure the Subject as below:
      • Name: aa
      • Country (Region): cn
      • Locality: hd
      • State/Province: bj
      • Organization: abc
      • Organization unit: rd
    4. Click Enroll to apply for a local certificate from the CA server. If succeeded, click Import in the Local certificate section to import the local certificate.
    5. Click Next to configure CRL options as below in the next page:
      • Check: Force
      • Auto refresh: Daily
      • URL1: CA server's address
    6. Click OK to save your settings.

Step 5: Configure ISAKMP gateways.

Device A

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. On the VPN Peer List tab, click New. In the Peer Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured ISAKMP gateway will be displayed in the peer list below.

Device B

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. On the VPN Peer List tab, click New. In the Peer Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured ISAKMP gateway will be displayed in the peer list below.

Step 6: Configure Phase2 Proposal.

Device A

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. On the Phase2 Proposal tab, click New. In the Phase2 Proposal Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured proposal will be displayed in the proposal list below.

Device B

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. On the Phase2 Proposal tab, click New. In the Phase2 Proposal Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured proposal will be displayed in the proposal list below.

Step 7: Configure a tunnel named VPN.

Device A

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. Click New. In the IKE VPN Configuration dialog, click Import behind the Peer name box, and select east from the drop-down list.
  3. Click Step 2: Tunnel to configure the options for the VPN tunnel as described below:
  4. Click OK to save your settings. The configured tunnel will be displayed in the IKE VPN list below.
  5. On the Navigation pane, click Configure > Network > Network to visit the Network page.
  6. Select tunnel1 from the interface list, and click Edit. On the General tab in the Interface Configuration dialog, configure the options as below in the Tunnel binding section:
  7. Click OK to save your settings and return to the Network page.

Device B

  1. On the Navigation pane, click Configure > Network > IPSec VPN to visit the IPSec VPN page.
  2. Click New. In the IKE VPN Configuration dialog, click Import behind the Peer name box, and select east from the drop-down list.
  3. Click Step 2: Tunnel to configure the options for the VPN tunnel as described below:
  4. Click OK to save your settings. The configured tunnel will be displayed in the IKE VPN list below.
  5. On the Navigation pane, click Configure > Network > Network to visit the Network page.<</li>
  6. Select tunnel1 from the interface list, and click Edit. On the General tab in the Interface Configuration dialog, configure the options as below in the Tunnel binding section:
  7. Click OK to save your settings and return to the Network page.

Step 8: Configure routes.

Device A

  1. On the Navigation pane, click Configure > Network > Routing to visit the Routing page.
  2. Click New. In the Destination Route Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured route will be displayed in the route list below.

Device B

  1. On the Navigation pane, click Configure > Network > Routing to visit the Routing page.
  2. Click New. In the Destination Route Configuration dialog, configure the options as below:
  3. Click OK to save your settings. The configured route will be displayed in the route list below.
