Third-party USB Key

Hillstone UKey certificate is the default certificate for the USB KEY authentication. When authenticating with Hillstone UKey certificate, the client will select Hillstone UKey certificate automatically and send it to the server, and the server will perform the authentication with the default certificate. This authentication process is transparent to the authenticated clients, i.e., the client need not to choose the certificate. If the third-party USB Key is used, you can set the third-party certificate as the default certificate to simplify the authentication process by using the tool named SelectUSBKey.

To set the third-party certificate to the default certificate, first you have to export the CSP Name of the USB Key in form of a registry file, and then add the exported file content to the registry of the client PC.

To export the CSP Name of the USB Key, take the following steps:

1. Install the driver of the third-party USB Key.
2. Insert the third-party USB Key.

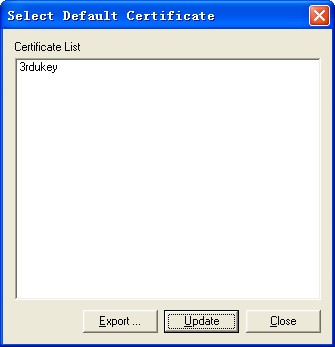

3. Double click SelectUSBKey.exe, and the Select Default Certificate dialog is shown as below:

   Export: Exports the CSP Name of the USB Key in form of a registry file.
   Update: Refreshes the certificate list.
   Close: Closes the dialog.
4. Select the certificate you want from the certificate list, and then click Export.

After exporting the CSP Name of the USB Key, double click the exported file, and then add the content to the registry of the client PC. When authenticating with the third-party certificate, the client will automatically select the third-party USB Key certificate and send it to the server.
