HA Configuration Example: Active-Passive (A/P) Mode

This section describes a typical HA Active-Passive mode configuration example.

Two security devices using the same hardware platform, firmware version, VR, anti-virus license and anti-virus configurations, construct the HA Active-Passive mode, and the two devices use the same interface to connect the network.

Device A is elected as the primary device to forward traffic, and Device B is the backup device. Device A will synchronizate its configuration information and status information to Device B. When Device A fails or the ethernet0/0 of Device A disconnects, Device B will take over the work of Device A and be selected as primary device to forward traffic.

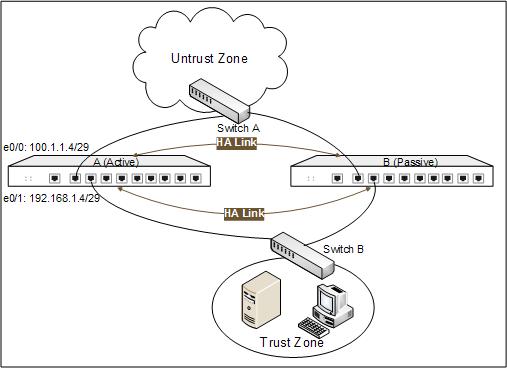

See the topology below:

Take the following steps:

Step 1: Configure a track object which is used for tracking the status of interface of Device A, and if the interface ethernet0/0 fails, the device will implement failover.

1. Select Objects > Track Object from the menu bar.
2. In the Track Object dialog, click New.
3. In the Track Object Configuration dialog, configure the options as below:
   • Name: trackobj1
   • Threshold: 255
   • Type: Click Interface and then click Add
   • Interface: ethernet0/0
   • Weight: 255
4. Click OK to return to the Track Object dialog.

Step 2: Configure HA groups.

Device A

1. Select System > HA from the menu bar.
2. Under Group0 in the HA dialog, configure the options as below:
   • Priority: 10
   • Track Object: trackobj1
3. Click OK to save your settings.

Device B

1. Select System > HA from the menu bar.
2. Under Group0 in the HA dialog, select 100 in the Priority box.
3. Click OK to save your settings.

Step 3: Configure interfaces and policies of Device A.

1. On the Navigation pane, click Configure > Network > Network to visit the Network page.
2. Select ethernet0/0 from the interface list, and click Edit.
3. In the Interface Configuration dialog, configure the options as below:
   • Binding zone: Layer 3 zone
   • Zone: untrust
   • Type: Static IP
   • IP address: 100.1.1.4
   • Netmask: 29
4. Click OK to save the changes and return to the Network page.
5. Select ethernet0/1 from the interface list, and click Edit.
6. In the Interface Configuration dialog, configure the options as below:
   • Binding zone: Layer 3 zone
   • Zone: trust
   • Type: Static IP
   • IP address: 192.168.1.4
   • Netmask: 29
7. Click OK to save the changes and return to the Network page.
8. On the Navigation pane, click Configure > Security > Policy to visit the Policy page.
9. Click New. In the Policy Configuration dialog, configure the options as below:
   • Src zone: trust
   • Dst zone: untrust
   • Src address: Any
   • Dst address: Any
   • Service: Any
   • Action: Permit

10. Click OK to save the changes and return to the Policy page.

Step 4: Configure HA link interfaces and enable HA.

Device A

1. Select System > HA from the menu bar.
2. In the HA dialog, configure the options as below:
   • Link interface 1: ethernet0/2
   • Interface 2: ethernet0/3
   • IP address: 1.1.1.1/24
   • HA cluster ID: 1
3. Click OK to save your changes.

Device B

1. Select System > HA from the menu bar.
2. In the HA dialog, configure the options as below:
   • Link interface 1: ethernet0/2
   • Interface 2: ethernet0/3
   • IP address: 1.1.1.2/24
   • HA cluster ID: 1
3. Click OK to save your changes.

Step 5: Configure the management IP of the primary device and backup device after synchronization.

Device A

1. On the Navigation pane, click Configure > Network > Network to visit the Network page.
2. Select ethernet0/1 from the interface list, and click Edit.
3. Under IP configuration in the Interface Configuration dialog, click Advanced.
4. In the Advanced dialog, type 192.168.1.253 into IP address box.
5. Click OK to save your settings and return to Interface Configuration dialog.
6. Click OK to save your settings and return to the Network page.

Device B: Use the same method to configure the management IP of Device B. Configure the managemenet IP of ethernet0/1 of Device B to 192.168.1.254.
